Dental Office Medical Gas System Installation

The Challenge

A design build firm specializing in medical office buildouts and remodels was working on a new dental office in the same complex where HPS was installing a medical gas system for another client. The company’s owner happened to walk by our work area noticed our team’s work. Instantly recognizing our high quality and attention to detail, the owner approached the HPS project manager to ask if our team could also install medical gas piping for his new dental office nearby. The owner stated that it is difficult to find contractors who have the attention to detail he requires, as well as the certifications and knowledge to properly and safely install medical gas systems. He had been through an unpleasant experience in the past where a medical gas system was not properly installed and there was potential for litigation. He knew how critical it is that medical gas systems be installed properly and to code.

The Strategy

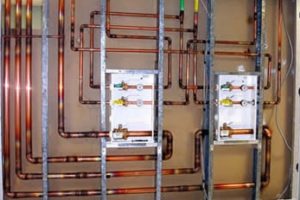

To install the medical gas system, HPS used CFOS (Cleaned for Oxygen Service) copper pipe and fittings, which are clean, bagged and hydro carbon free, to deliver oxygen to patients in a medical office.

In addition to stringent healthcare standards, this particular job had strict time constraints requiring flexibility from HPS. From an immediate mobilization and commencement of work, we needed to adapt our process in order to work in an occupied space with other construction trades, and the building firm owner was under a tight deadline to get the new dental office up and running. By adjusting our installation schedule to minimize disruptions for other occupants of the office building and keep noise levels at a minimum during early mornings and late nights, we finished the installation in just over a week.

Once complete, our installation underwent six rigorous tests including an initial system blowdown, primary pressure test, cross connection test, piping purge, 24 hour standing pressure testing, and third party analysis and verification to ensure that it met the current NFPA 99 Health Care Facilities Code — our system passed every test.

The Result

It is a testament to our commitment to excellence on every project that a client so dedicated to quality installations took notice of our work and approached us with an inquiry. The firm was pleased with our open communication and willingness to adapt to their schedule, which led to continued collaboration on several projects since the initial installation.

Sanitary pipe and tube material selection guide

See how matching materials to processes boosts performance and increases safety in your operations.

Download eBook

Our team installed process supply lines for liquid nitrogen, gaseous nitrogen, compressed dry air, ammonia, dilute silane, hydrogen, and a chilled water loop. All of these lines supported and connected the MOCVD tool, a Molecular Beam Epitaxy (MBE) system, silane, ammonia and nitrogen cabinets, a portable chiller, and the hydrogen bank that was located outside.

HPS used orbital welding equipment to install the single wall stainless steel tubing (Coaxial) for non-hazardous gases and double containment stainless steel tubing for highly combustible and hazardous gases. The tubing ranged from ¼” OD to ½” OD. Each line was pressure tested prior to completion. Once completed, our team had a third-party QA/QC validate the system’s analytical counts for turnover to the customer.

The Result

As with every job HPS tackles, our sincere dedication to quality and complete customer satisfaction on this project was unparalleled. Every weld was completed to American Society of Mechanical Engineers (ASME) B31.3 and semiconductor standards for weld oxidation limits and weld profile.

Once the project was complete, the customer was excited to use their finished laboratory. They appreciated High Purity Systems’ drive to deliver valuable guidance during project development, provide quick solutions to on-site challenges, and overcome unanticipated issues.
